OFFSET DISC HARROW (18 Disc)
Skip to product information
1 of 1

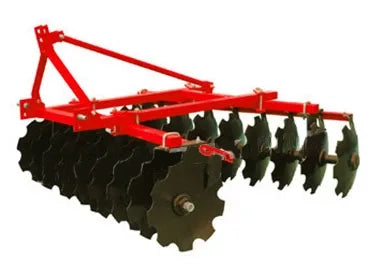

OFFSET DISC HARROW (18 Disc)

OFFSET DISC HARROW (18 Disc)

Regular price $1,850.00
Regular price Sale price $1,850.00
Sale Sold out
Category: DISC HARROW
Tags: DISC HARROW, Field Cultivators, Implements
Get A Quote View full details

MOUNTED CUM TRAILED

The Offset Disc Harrow has a heavier weight per Disc and thus has the penetration ability to break down large clods normally left after disc plowing or Chisel Plowing on hard grounds. It is of robust construction, used as mounted or trailed, and ideal for chopping and mixing stubbles and crop residues in the soils.

The disc Harrow prepares the seedbed leaving the soil in granular form which is the most suitable structure for plant growth. It aerates the soil, helps to conserve moisture for longer periods, and eradicates weeds.

In sandy loam soils, this implement can also be used as a primary tillage implement. The depth of plowing is regulated simply by manipulating the offset angles of the gauges. By removing simply a pin, the mounted position can be converted into trailed position and vice versa.

OFFSET DISC HARROW (18 DISC)

General
Application Used for tilling and incorporation of crop residue into the soil
Front gang Notched
Rear gang Plain
Disc spacing 220 mm
Tractor power 60 hp or above
Linkage category II
Overall Dimensions
Length



Mounted position
Trailed position





2200 mm ± 20 mm
3400 mm ± 20 mm

Width 2200 mm ± 20 mm
Height



Mounted position
Trailed position





1550 mm ± 20 mm
1350 mm ± 10 mm

Material Specifications
Main frame 02 Nos. M.S. box 130 × 30 × 6 mm or rolled channel 6 mm M.S. sheet of the same size
Mast (A-frame) Inverted T-type, 02 Nos. M.S. box 75 × 75 × 5 mm, 800 mm long (each) reinforced with 9 mm M.S. plate
Hitch assembly 38 mm dia. M.S. round hook, 18 mm M.S. plate bracket, rotatable
Mast support 62 × 12 mm leaf spring or 62 × 62 × 6 mm M.S. box
Hitch brackets 30 mm M.S. flat, reinforced with 6 mm M.S. sheet
Disc 660 mm dia., 6 mm thick, hardened steel HRC 40 – 50
Disc spacer C.I. / M.S. with male-female hex
Disc scraper 5 mm M.S. sheet
Gang shaft 68 mm M.S. round
Gang angling beam M.S. box 75 × 75 × 5 mm, reinforced with M.S. flat 75 × 6 mm at the top or inner side with adjusting holes
Pivot assembly C-Type yoke/bracket made from 25 mm M.S. plate, and 6 mm M.S. sheet, M.S. bush made from the pipe of 10 mm wall thickness and 50 mm dia. pin, hardened
Disc gang standard 15 mm M.S. plate reinforced with 9 mm M.S. flat welded to the main frame or 5 mm M.S. sheet to make box welded to the main frame
Transport wheel To be fitted on sides or on rear-wards with back frame
Wheel 02 Nos. 6.00 – 16, pneumatic (general) with 02 rims of 18 kg (min)
Hub 02 Nos. steel cast
Bearing 04 Nos. 6208
Axle 02 Nos. 45 mm dia. M.S.
Mounting 02 Nos. M.S. box 62 × 62 × 6 mm, 600 mm long
Disc Bearing 08 Nos. 7512 or 32212 tapered roller
Miscellaneous
Paint Double coat with primer after surface finish
Nuts and bolts To be tightened with spring washers
Bearings European standard
Warranty Free: 1 year for parts and service
Extended: 5 years for parts supply on payment
