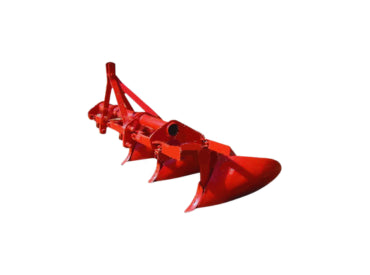

VEGETABLE RIDGER
1 1

VEGETABLE RIDGER

VEGETABLE RIDGER

Category: HARVESTER & THRESHER
Tags: Implements, SHREDDERS & CUTTERS
Get A Quote View full details

VEGETABLE RIDGER

General
Application To make ridges for vegetable crops
Ridger tines 03 Nos.
Row marker Provided
Ridge spacing 762 mm, adjustable
Tractor power ≥ 50 hp
Overall Dimensions
Length 1100 mm ± l0 mm
Width 2340 mm ± 20 mm
Height 1100 mm ± 10 mm
Weight (min.) 250 kg ± 5 kg
Material Specifications
Main frame 75 x 75 x 5 mm M.S. channel box
Mast (A-frame) 8 mm, M.S. formed sheet
Hitch 25 mm, M.S. plate
Tine 75 x 25 mm, M.S. plate
Wings 8 mm, M.S. formed sheet
Share 10 mm Steel Cast
Miscellaneous
Paint Double coat with primer after the surface finish
Nuts and bolts To be tightened with spring washers
Warranty Free: 1 year for parts and service

Extended: 5 years for parts supply on payment
