TRACTOR MOUNTED MIST BLOWER SPRAYER

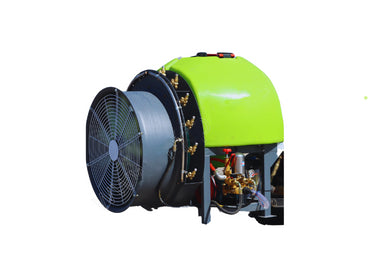

TRACTOR-MOUNTED MIST BLOWER SPRAYER (CANON TYPE)
| Application |
For spraying of field crops and archers |
|
|
| Spray tank capacity |
≥ 400 liters |
|
|
| Droplet generation |
By rotary atomizers/nozzles (discharge 0.2 – 0.4 L/min) |
|
|
| Flow rate |
ULV < 02 L/min.
LV 10 – 20 L/min
MV 21 – 40 L/min
|
|
|
| Pump |
Centrifugal/Plunger type, PTO driven, 50 L/min |
|
|
| Pressure control chest |
Adjustable with 2-section direct delivery and tank return value with flow regulator |
|
|
| Frame |
50 × 30 × 3 mm or 65 × 50 × 4 mm M.S. channel |
|
|
| Spray Tank |
Synthetic fiber-glass/high-density polyethylene, corrosion resistant with graduated scale and supported with 90 × 3 mm M.S. strap |
|
|
| Pump suction hose |
29 mm dia. flexible quality rubber/synthetic |
|
|
| Delivery/supply hose |
18 mm dia. to maintain atomizer, quality rubber/synthetic
15 mm dia. to the small atomizer, quality rubber/synthetic
|
|
|
| Main atomizer |
Adjustable steel sheet of 15 gauge, 200 mm dia. with silver flange |
|
|
| Blower |
480 mm dia. face width 60 mm, 3200 rpm |
|
|
| Air velocity |
≥ 120 km/hr. |
|
|
| Paint |
Double coat with primer after surface finish |
|
|
| Nuts and Bolts |
To be tightened with spring washers |
|
|
| Bearings |
European Standard or Equivalent |
|
|
| Warranty |
Free: 1 year for parts and service
Extended: 5 years for parts supply on payment
|
|
|
