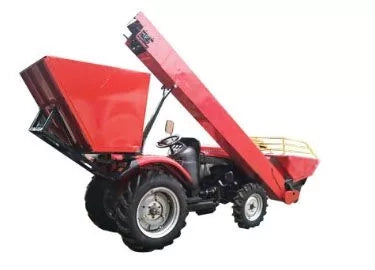

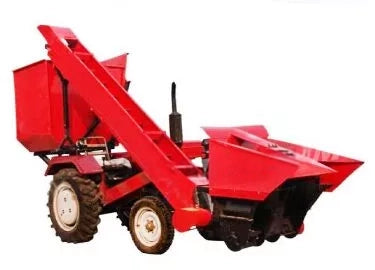

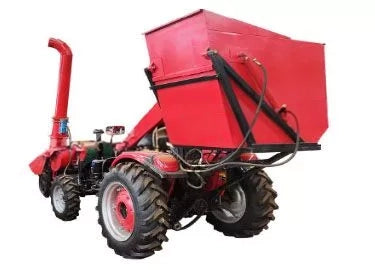

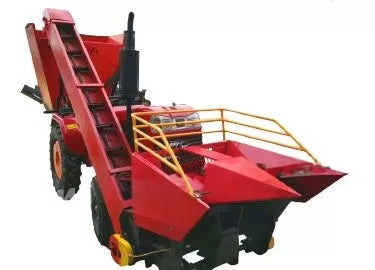

CORN PICKER / COB HARVESTER
CORN PICKER / COB HARVESTER (TRACTOR OPERATED)
| Application |
For picking and dehusking maize cobs from the field |
|
|
| Field Capacity |
0.6 – 0.8 acre/hr |
|
|
| Number of cutting rows |
02 |
|
|
| Hopper Capacity (min) |
2.7 m3 |
|
|
| Power requirement |
≥ 60 hp Tractor |
|
|
| Warranty |
Free: 1 year for parts and service
Extended: 5 years for parts supply on payment
|
|
|
| Application |
For picking and dehusking maize cobs from the field |
|
|
| Field capacity |
≥ 1 acre/hr |
|
|
| Main Frame |
120 × 120 × 6 mm, 120 × 60 ×6 mm, and 60 × 60 × 6 mm M.S. box |
|
|
| Hitch |
120 × 120 × 6 mm M.S. box, 200 × 10 mm M.S. flat |
|
|
| Towing frame |
120 × 120 × 6 mm and 100 × 100 × 10 mm M.S. box, 90 × 10 mm M.S. flat |
|
|
| Dehusking spiral rollers |
06 Nos. metal, 06 Nos. rubber, 1230 mm long |
|
|
| Shredding unit |
33 Nos. blades 200 × 6 mm M.S. flat bolted on 160 × 8 mm M.S. plate, 3 mm thickness M.S. sheet cover, 60 mm dia. M.S. shaft |
|
|
| Elevator |
16 gauge M.S. sheet cover |
|
|
| Snapper rollers & conveyor |
04 rollers 88 mm dia. 150 × 75 × 6 mm M.S. box, 120 × 30 mm M.S. flat 150 × 100 × 9 mm M.S. plate |
|
|
| Storage bin |
16 gauge M.S. sheet with supports of 38 × 38 × 4.5 mm M.S. box |
|
|
| Hydraulic jack |
02 Nos. 80 mm and 70 mm OD, 50 mm ID |
|
|
| Tyre size |
02 Nos. 11.5 / 80 – 15 |
|
|
| Paint |
Double coat with primer after surface finish |
|
|
| Bearings |
European Standard or Equivalent |
|
|
| Nuts and Bolts |
To be tightened with spring washers |
|
|
| Warranty |
Free: 1 year for parts and service
Extended: 5 years for parts supply on payment
|
|
|
