The most important plow for primary tillage is in canal-irrigated or heavy rain areas where there is too much weed growth. The objective of plowing with a Mould Board is to completely invert and pulverize the soil, up-root all weeds, trash, and crop residues, and bury them under the soil.
The shape of the Mould Board is designed to cut down the soil and invert it to the right side completely burying the undesired growth which is subsequently turned into manure after decomposition.

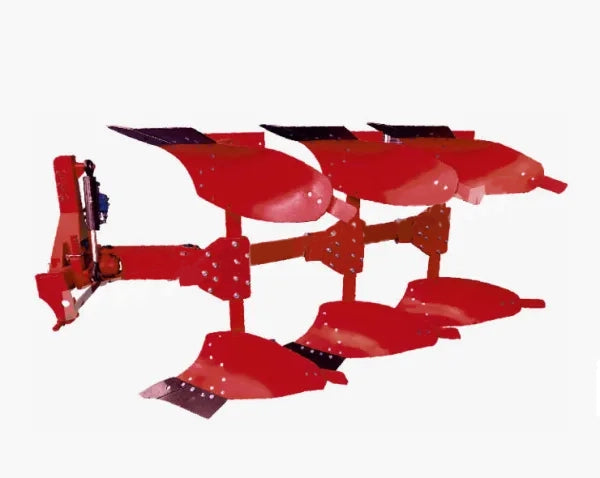

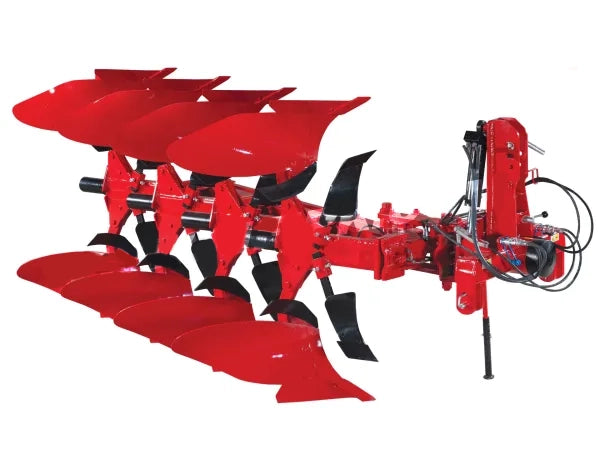

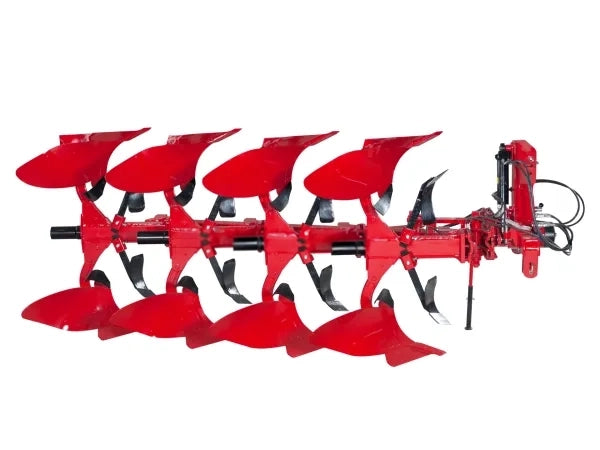

REVERSIBLE HYDRAULIC MOULD BOARD PLOW
General
Application
For cutting and inversion of soil
Tractor power
> 60 hp
No. of Bottoms
03 Reversible
Reversing Mechanism
Hydraulic and manually operated lever with locking system
Overall Dimensions (Min.)
Length
3100 mm ± 30 mm
Width
1700 mm ± 10 mm
Height
1450 mm ± 10 mm
Material Specifications
Main frame
M.S. pipe 120 mm dia. 12 mm wall thickness and M.S. shaft SO mm dia. With the support of M.S. angle 75 x 75 x 9 mm and rectangular bar 80 x 30 mm
