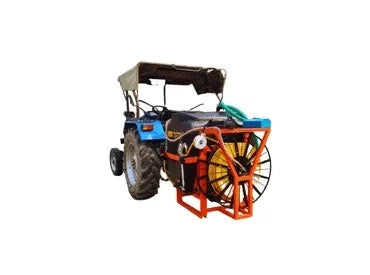

TRACTOR MOUNTED GUN SPRAYER
TRACTOR MOUNTED GUN SPRAYER
| Application |
To spray low-growing arable (field) crops and weeds |
|
|
| Spray tank capacity |
500 L |
|
|
| Spray gun |
04 Nos., lance type, manually held with adjustable jet throw |
|
|
| Spray jet height (max) |
7620 mm (25 ft) |
|
|
| Pump |
Plunger, PTO driven, 100 L/min capacity @ 20 bar |
|
|
| Pressre gauge |
0 – 40 kg/cm2 , glycerin filled |
|
|
| Pressure control chest |
Adjustable |
|
|
| U.J. shaft |
01 No. with protective cover |
|
|
| Frame |
65 * 40 * 6 mm formed channel with 02 Nos., rear vertical member of 60 * 40 * 3 mm channel |
|
|
| Spray Tank |
Synthetic (fiber-glass) with graduated scale |
|
|
| Tank support |
65 * 40 * 6 mm channel loop with bracket |
|
|
| Strainers |
Tank filling hole 20 – 30 mesh, SS Pump section end 40 mesh, SS |
|
|
| Pump suction hose |
38 mm dia. flexible quality rubber |
|
|
| Delivery/supply hose |
12 mm dia. 15 mm, 4 Nos. flexible quality reinforced rubber |
|
|
| Spray gun |
04 Nos., 25 mm o.d. high-pressure steel/brass pipe 600 mm long with trigger |
|
|
| Paint |
Baked after smooth surface finish |
|
|
| Nuts and Bolts |
To be tightened with spring washers |
|
|
| Warranty |
Free: 1 year for parts and service
Extended: 5 years for parts supply on payment
|
|
|
