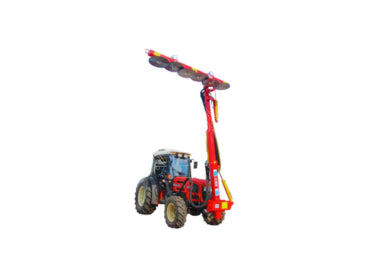

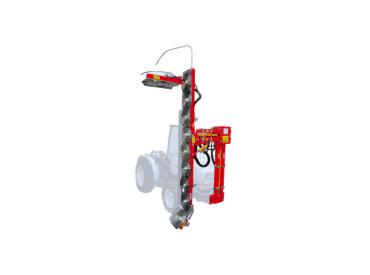

Used for canopy management of Citrus/Guava/ Mango/Pomegranate tress
Controls
Electronic
Cutting ability
up to 100 mm (branch dia.)
Hydraulic oil tank capacity
150 liters
Hydraulic pump
Discharge 66 liters/min @ 540 rpm (PTO), 270 – 300 bar pressure with hydraulic lines
Cooling system
Provided
Tractor power
≥ 60 hp preferably 4WD
Working height
≥ 6500 mm
Type
Tractor Front Mounted
Overall Dimensions
Length
8000 mm ± 80 mm
Width
810 mm ± 10 mm
Height (max)
a) Lower arm height b) Upper arm height
7600 mm ± 80 mm
1500 mm ± 20 mm 2700 mm ± 30 mm
Weight
≥ 1100 kg with hydraulic oil
Material Specifications
Main frame
03 Nos. 150 × 75 × 5 mm, 120 × 60 × 5 mm, 60 × 60 × 5 mm M.S. box, 02 Nos. 90 × 85 × 16 mm M.S. plate
Tractor attachment
02 Nos. 200 × 20 mm and 180 × 16 mm M.S. plate with 02 Nos. 60 × 60 × 4.5 and 50 × 50 × 4.5 mm and 50 × 19 mm M.S. flat
Platform
03 Nos. 12 mm thick M.S. base plate, 02 Nos. 100 × 60 × 12 mm M.S. angle for hydraulic jack mounting, 02 Nos. 70 mm OD M.S. bush and 45 mm dia. pin for hydraulic jack and main frame mounting
Hydraulic jack frame
180 × 100 × 6 mm M.S. channel box (Female), 150 × 75 × 6 mm M.S. channel box (Male), 16 mm and 9 mm thick M.S. plate
Hydraulic jack
85 mm OD housing, 30 mm ram dia. 300 mm long and 60 mm OD housing, 40 mm ram dia. 1400 mm long and 85 mm OD housing, 50 mm ram dia. 450 mm long
Disc
05 Nos., 600 mm dia. 3 mm thick with 54 No. of carbide tips with HRC ≥ 50, hydraulic motors 40 – 50 bar for each disc
Hydraulic pump frame
1100 × 810 × 625 mm, M.S. sheet 6 mm thick, with 12 mm thick with oil tank hitch plate
Control valve assembly
Double action with jointer release valve 350 – 400 bar
Parking stand
02 Nos. 72 × 72 × 4.5 mm, 60 × 60 × 4.5 mm M.S. box, and 02 Nos. 62 × 62 × 6 mm, 50 × 50 × 4.5 M.S. angle, and 62 × 12 M.S. flat
Accessories
01 No. set of blades, tool-box, tools, and operational manual
