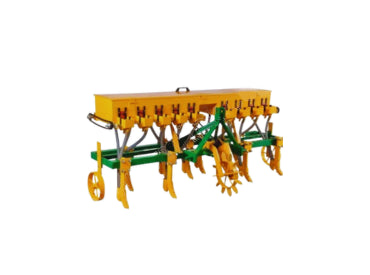

GROUNDNUT DRILL
1 4

GROUNDNUT DRILL

GROUNDNUT DRILL

Category: MATERIAL HANDLERS
Tags: Implements, MATERIAL HANDLERS
Get A Quote View full details

GROUNDNUT DRILL

General
Application For sowing of groundnut
Nos. of rows 08
Row spacing 250 – 450 mm adjustable
Tractor power 50+ hp
Furrow opener Hoe type
Seed tube Flexible/transparent plastic
Power transmission Ground wheel through the gear train
Metering device Fluted wheel (plastic)
Seed hopper capacity 60 – 80 kg
Overall Dimensions
Length 1000 mm ± 10 mm
Width 2400 mm ± 20 mm
Height 1000 mm ± 10 mm
Material Specifications
Main frame M.S. channel 75 x 37 x 4.5 mm with a cross member of M.S. flat 62 x 8 mm
Hitch M.S. box 75 x 40 x 5 mm
Mast (A-frame) 62 x 2 mm and 50 x 9 mm M.S. flat
Seed hopper and lid M.S. sheet 18/20 gauge, hopper, mounted with M.S. flat 38 x 8 mm
Ground wheel 62 x 5 mm M.S. flat, 15 mm M.S. round, and 40 mm M.S. round axle (cold drawn) and C.I hub 100 mm dia. mounted on 75 x 40 x 6 mm M.S. box
Metering Device

Seed metering unit



Fluted wheel type (plastic) with adjustable lever for seed rate
Fluted wheel

Size
Slot size
No. of slots
Hole for drive shaft

 Slotted type alternative slot from the center line

95 mm dia. and 43 mm width
Tapered slots, length 28 mm, width 20 mm, and depth 10 mm
08 Nos.
19 mm square
Metering device drive shaft M.S. square bar 18 x 18 mm
Tine 08 Nos. forged flat 50 x 20 mm, tine support M.S. angle 50 x 4 mm with spring, o.d. 45 mm, wire dia. 10 mm
Gears 03 Nos. cast iron face width 25 mm
Bearings 04 Nos. 6306/6307 for wheel and 02 Nos. of 6007 and 01 No. 6304 for gears
Miscellaneous
Paint Double coat with primer after the surface finish
Bearings European Standards
Nuts and bolts To be tightened with spring washers
Warranty Free: 1 year for parts and service
Extended: 5 years for parts supply on payment
