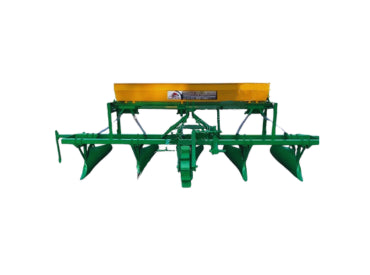

SUGARCANE RIDGE WITH FERTILIZER
SUGARCANE RIDGE WITH FERTILIZER
| Application |
For sugarcane plantation |
|
|
| No. of rows |
03 (adjustable) |
|
|
| Field Capacity |
≥ 1.0 acre/hr |
|
|
| Power transmission |
Through ground wheel |
|
|
| Fertilizer box capacity |
4 bags |
|
|
| Metering mechanism |
Fluted wheel |
|
|
| Main frame |
70 * 40 * 6 mm M.S. box with 2 cross members of the same size |
|
|
| Hitch |
70 * 40 * 6 mm M.S. box welded with the main frame |
|
|
| Mast |
64 * 8 mm and 50 * 10 mm M.S. flat |
|
|
| Tine |
709 * 76 * 23 mm M.S. sheet |
|
|
| Tine supports |
70 * 40 * 6 mm M.S. Box welded with 66 * 9 mm M.S. flat at ends and bolted with the main frame |
|
|
| Wings |
6 mm M.S. sheet supported with 38 * 8 mm M.S. flat |
|
|
| Share |
M.S. hardened sheet 205 * 130 * 10 mm, HRC 40 – 45 with the bottom plate 125 mm wide and 16 mm thick |
|
|
| Fertilizer box |
18 gauge M.S. sheet with 22 mm round shaft |
|
|
| Ground wheel |
508 mm rim dia., 75 * 6 mm M.S. flat, and 38 * 38 * 5 mm M.S. angle pegs mounted on 75 * 75 * 6 mm M.S. box adjustable |
|
|
| Bearings |
02 Nos. 6206 sealed with bracket
02 Nos. 6205 sealed with bracket
|
|
|
| Power transmission |
32 mm dia. shaft, Chain 60 # |
|
|
| Parking stand |
45 mm dia. with wall thickness 4 mm |
|
|
| Paint |
Double coat with primer after the surface finish |
|
|
| Nuts and bolts |
To be tightened with spring washers |
|
|
| Bearings |
European standard or equivalent |
|
|
| Warranty |
Free: 1 year for parts and service
Extended: 5 years for parts supply on payment
|
|
|
