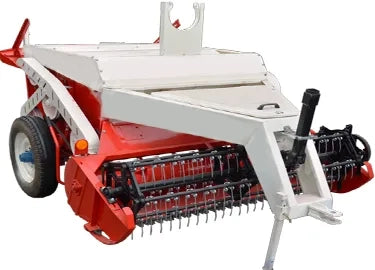

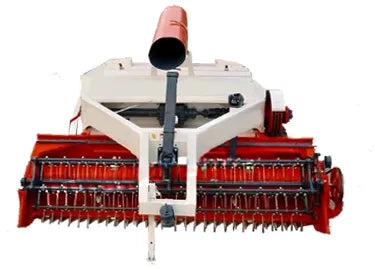

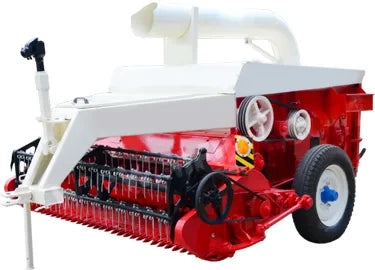

WHEAT STRAW CHOPPER BLOWER
WHEAT STRAW CHOPPER BLOWER
| Application | For collecting and chopping of wheat straw after combining harvester operation | |
|
| Working width | 2300 mm or above | |
|
| Wheels | 02 Nos. 7.50 – 16, 12 PR | |
|
| Field Capacity | ≥ 1.0 acre/hr | |
|
| Hitch | 100 x 100 x 5 mm M.S. box | |
|
| Toe hook | U-type 17 mm M.S. plate rotatable | |
|
| Trolley hook | U-type 25 mm M.S. plate rotatable | |
|
| Main frame | 5 mm M.S. formed sheet on both sides | |
|
| Back side frame | 150 x 75 x 5 mm M.S. box | |
|
| Hydraulic phis | 02 Nos. 12 mm dia. M.S. pipe | |
|
| Gearbox | Cast iron/M.S. casting, with a 1:1 ratio | |
|
| U.J. shaft | 01 No. standard quality forged yokes | |
|
| Reel pipe | 06 Nos. 32 mm dia. M.S. pipe with 2 mm wall thickness | |
|
| Reel plates | 03 Nos. 14 gauge M.S. steel formed, hexagonal | |
|
| Reel shaft | 58 mm dia. M.S. pipe 2.5 mm wall thickness | |
|
| Collectors | 72 Nos. straw collectors, 5 mm spring steel | |
|
| Cutter bar length | 2360 mm | |
|
| Blades | 31 – 33 Nos. triangular 75 mm, HRC 50 – 60 | |
|
| Blade guards | Steel cast/forged steel | |
|
| Drive system | Wobble box of combine harvester 1:1 ratio | |
|
| Skids | 02 Nos. 62 x 12 mm M.S. flat | |
|
| Auger frame | 3 mm M.S. sheet, both sides | |
|
| Auger dia. | 250 mm M.S. pipe with 2 mm wall thickness | |
|
| Auger flights | 95 x 2 mm M.S. sheet | |
|
| Auger lugs | 20 Nos. semicircular formed M.S. sheet 100 x 2 mm fitted with nut & bolts on 2 mm base plate | |
|
| Auger bearings | UCP/UCF, 207/208 | |
|
| Auger axle | 40 mm dia. M.S. round axles 02 Nos. | |
|
| Auger sprocket & chain | Sprocket 12 mm face width, 60 # chain | |
|
| Intermediate & sieve shaft | 40 mm dia. M.S. round | |
|
| Feeder shaft | 45 mm M.S. round, with 02 Nos. appropriate size bearings | |
|
| Threshing drum rims & rings | 05 Nos. (03 Nos. rims & 02 Nos. rings) 582 mm dia. MS. formed sheet/steel casting | |
|
| Threshing drum shaft | 66 mm M.S. round with 02 Nos. appropriate size universal type bearings | |
|
| Threshing bar | 16 Nos. 1475 x 50x 9 mm M.S. flat | |
|
| Threshing blades & concave | 280 Nos. 50 – 60 HRC | |
|
| Sieve | 18 gauge M.S. sheet 4.5 mm hole dia. | |
|
| Grain tray | M.S. sheet 16-gauge can hold 40 kg grains | |
|
| Fan | 2 Nos. each with 4-wings, M.S. sheet 4 mm thickness | |
|
| Blower shaft | 66 mm M.S. round with 02 Nos. appropriate size universal type bearings | |
|
| Blower body | 2 mm and 3 mm M.S. sheet in front of the fan’s face | |
|
| Blower pipe | Moveable, 14 gauge M.S. sheet with extension pipe 16 gauge | |
|
| Paint | Double coat with primer after the surface finish | |
|
| Bearings | European Standard or equivalent | |
|
| Nuts and bolts | To be tightened with spring washers | |
|
| Warranty | Free: 1 year for parts and service Extended: 5 years for parts supply on payment
| |
|
