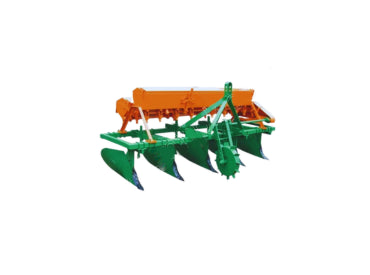

MAIZE BED PLANTER
1 1

MAIZE BED PLANTER

MAIZE BED PLANTER

Category: SEEDERS & PLANTERS
Tags: BED PLANTERS & DRILLS, Implements, SEEDERS & PLANTERS
Get A Quote View full details

MAIZE BED PLANTER

General
Application For the planting of maize on beds
No. of rows 04
Row spacing 687 – 762 mm (adjustable)
Seed metering Plate type (pneumatic)
Seed plates 01 set for each crop
Tractor power ≥ 50 hp
Overall Dimensions
Length 1910 mm ± 20 mm
Height 1600 mm ± 10 mm
Width 2760 mm ± 20 mm
Material Specifications
Frame 02 Nos. M.S. boxes 62 x 62 x 6 mm
Mast (A-Frame) 62 x 12 mm M.S. flat & 50 x 12 mm M.S. flat
Hitch 62 x 62 x 6 mm M.S. box
Bed shaper plate 2440 x 1220 x 5 mm M.S. formed sheet
Furrow opener with wings M.S. plate 6 mm of tip and M.S. plate 5 mm furrow with wings
Blower 400 mm dia. 4500 rpm, M.S. sheet 10 and 14 gauge
Air suction Pipe 60 x 60 x 4 mm M.S. sq. pipe with 04 Nos. vent pipe 38 mm OD, 16 gauge, flexible vinyl pipes 62 mm dia. (main) and 38 mm dia. (distributor) with steel wire impregnated
Seedbox 04 Nos. fiber-glass boxes 8 kg each
Seed plate 215 mm dia. with 13 Nos. tips for each crop
Seed drive shaft 22 mm M.S. round cold drawn
Ground wheels 02 Nos. 6.00 – 12 with lugs (8 ply), 60# chain
Row marker 02 Nos. 35 x 35 x 6 mm M.S. box hoe type
Miscellaneous
Paint Double coat with primer after the surface finish
Bearing European Standards
Nuts and bolts To be tightened with spring washers
Warranty Free: 1 year for parts and service

Extended: 5 years for parts supply on payment
